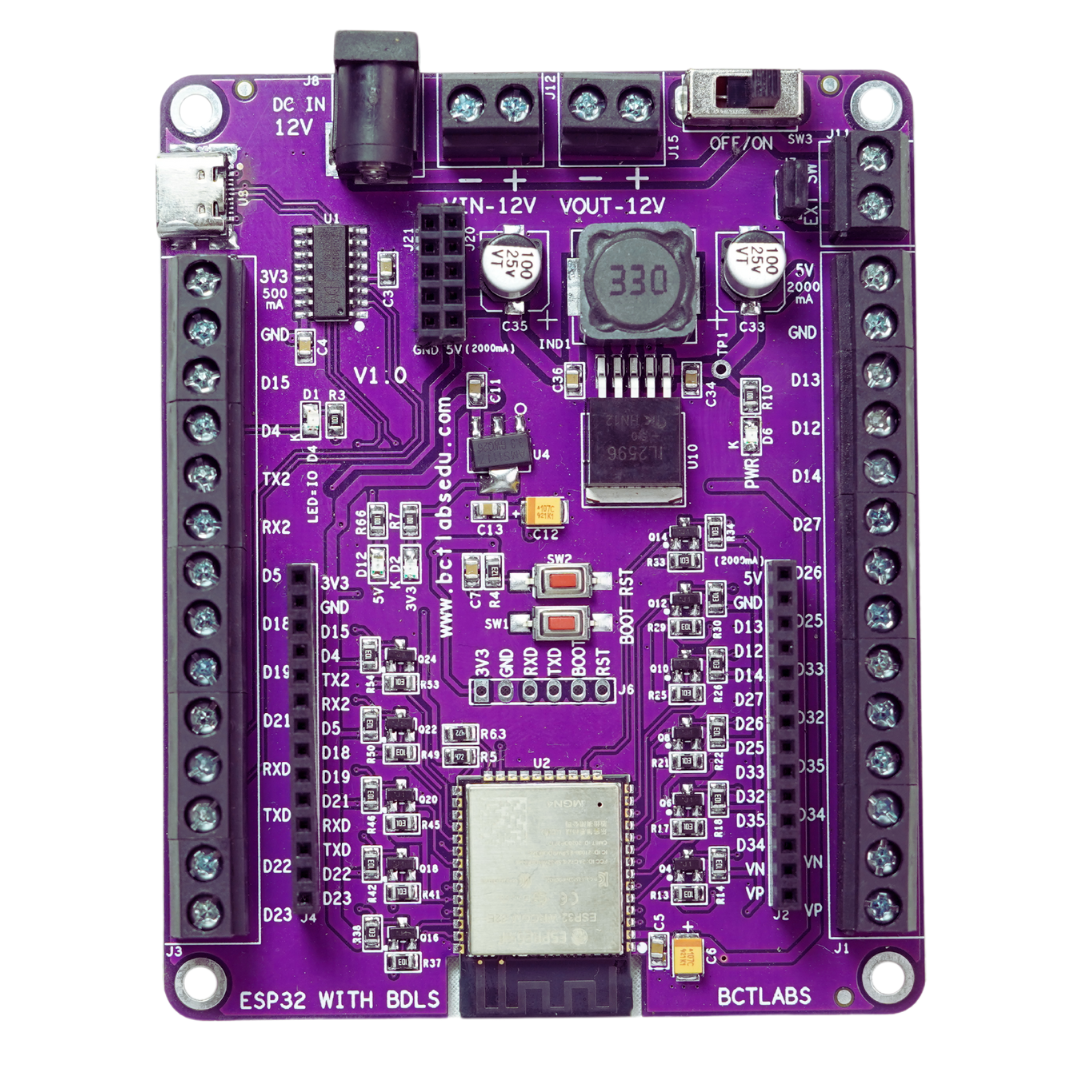

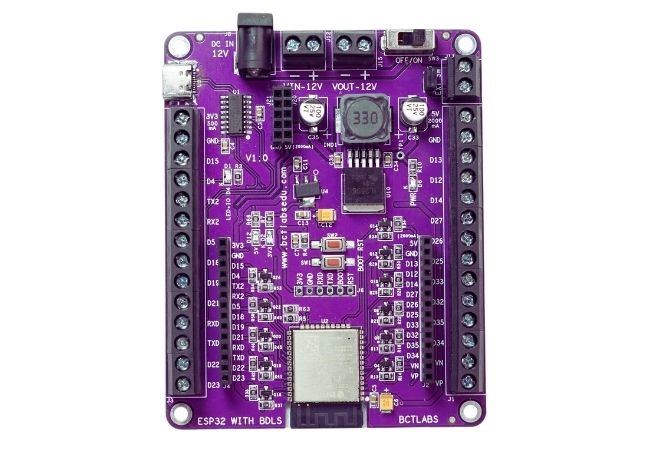

This board features a powerful dual-core Tensilica LX6 microprocessor running at 240 MHz, with 12V DC input including polarity protection and an on/off switch. It supports all IOs with screw terminals and bi-directional level shifters for seamless compatibility with 5V modules, plus a 5V/2000mA output to power additional devices. Connectivity options include UART, SPI, I2C, PWM, CAN, and touch sensors, with easy programming via Arduino IDE through a USB-C port and CH340C USB-to-serial bridge.
